Description
LESS TIME FINDING. MORE TIME FISHING.

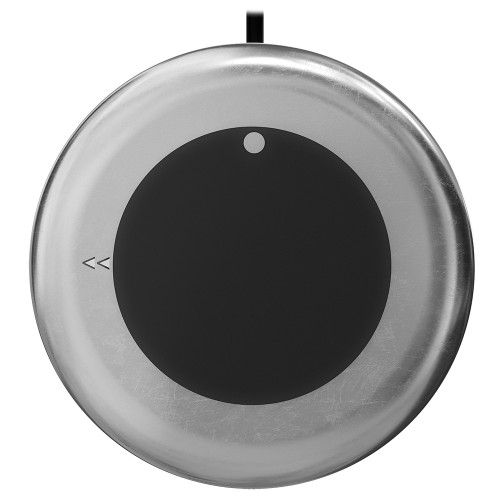

Garmin GT17M-THF,designed for reduced drag and optimum sonar performance on fishing and cruising boats, this flush-mounted 1 kW midband CHIRP (80–165 kHz) transducer clearly defines fish arches, structure and bottom depth returns on your display.
 |
 |
 |
 |
 |
 |
| See maximum depth performance to 2,400’ in freshwater. | Access CHIRP sonar frequency range from 80–165 kHz. | Search with beamwidths of 9–18 degrees. | Count on fast-response water temperature sensing. | Thru-hull design offers flush installation with 0-, 12- or 20-degree tilt. | Auto-ID enables simple plug-and-play operation. |
What's In The Box:
GT17M-THF SS Mid Band Chirp Transducer - 0° - 1kW - 8-Pin |
GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-Pin |
GT17M-THF SS Mid Band Chirp Transducer - 20° - 1kW - 8-Pin |
|
GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation |
GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation |
GT17M-THF transducer Jam nut Spacer 2 washers 2 set screws Thread isolator Hull isolator Documentation |
Specifications:
| GT17M-THF SS Mid Band Chirp Transducer - 20° - 1kW - 8-Pin | GT17M-THF SS Mid Band Chirp Transducer - 12° - 1kW - 8-Pin | GT17M-THF SS Mid Band Chirp Transducer - 0° - 1kW - 8-Pin |
|
Deadrise/Transom Angles: 20° supports hull deadrise angles from 16° to 24° |
Deadrise/Transom Angles: 12° supports hull deadrise angles from 8° to 15° |
Deadrise/Transom Angles: 0° supports hull deadrise angles from 0° to 7° |
Features:
- Transducer Frequency: Medium band CHIRP (80-165 kHz)
- Transducer Power: 1 kW
- Transducer Beamwidth: 9°-18°
- Transducer Maximum Depth: 1800 ft saltwater; 2400 ft freshwater
- RapidReturn™ Sonar Compatible: Yes
- Transducer Cable Length: 50 ft
- Transducer Depth/Speed/Temperature: Depth, temperature
- Transducer Number of PINs: 8-pin
- Housing Material: Stainless steel
