Description
Humminbird Helix 5 Sonar G2
- SwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.
- DualBeam Plus Sonar - Two beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.
- Up-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section

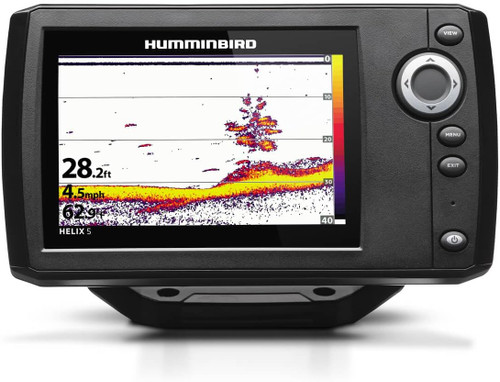

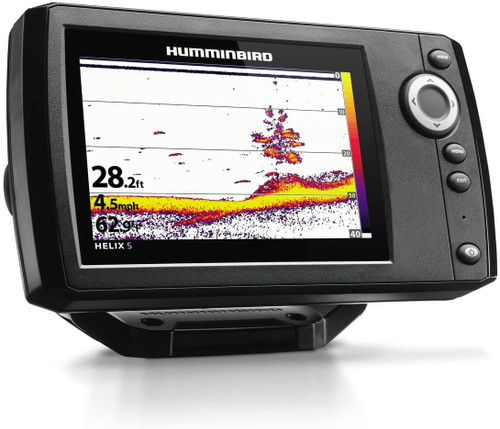

The HELIX 5 Sonar G2 with our new user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.
Specifications| Display size | 5 in |
| Display resolution | 800 x 480 |
| Display type | Color TFT |
| Display colors greayscale | 16-bit |
| Standard sonar | DualBeam PLUS |
| Standard sonar coverage | 20° & 60° @ -10db |
| Standard sonar frequency | 200/83 kHz |
| Target separation | 2.5 in |
| Power output RMS | 500 watts |
| Power output Peak to Peak | 4000 watts |
| Temperature | Built-in transducer |
| Speed | Optional |
| Backlight | LED |
| Switchfire sonar | Yes |
| Split screen zoom | Yes |
| Split screen bottom lock | Yes |
| Large digits view | Yes |
| Selective FishID | yes |
| Card reader | No |
| Input Voltage | 10.8-20 VDC |
| Input Draw | 650 mA |

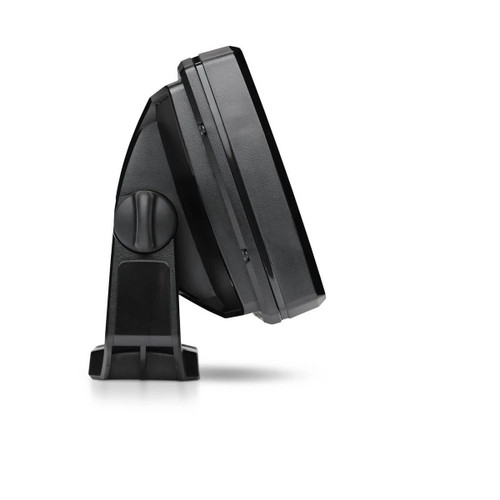

| Dimensions | Gimbal Mount:7.55"W x 4.64"H x 3.3"D Gimbal Mount:7.55"W x 4.64"H x 3.3"D |
What's in the Box:
- Helix 5 Sonar G2
- Bracket
- Powercord

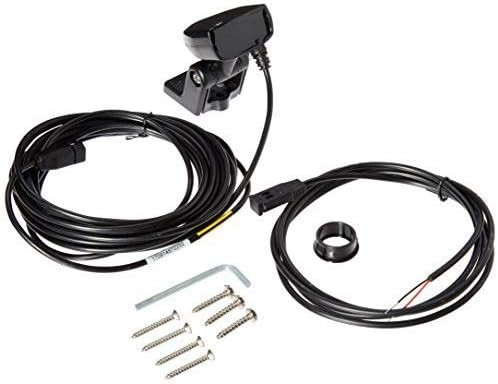

- XNT 9 20 T transom mount transducer
- Documentation
Specifications
- Included Transducer:
- XNT-9-20T
- Transducer Type:
- Transom Mount
- Transducer Included:
- Yes
- Screen Size:
- 5"
- California Residents:
- WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Reviews
2 Reviews
-
Working Good
Does What I need, Good Price!
-
Works
I like Hummingbird over others. Im replacing a Laurens because i didn't like the scream set up and every time i turned it on i had to go through some stupid steps to set it up. This is more my style. Easy and it actually remembers my previous settings. Wow. Really? Yes. IT kinda thinks like i do. Don't start from scratch every day. Also. Unless you have never worked on a boat before (if never, get some help) but otherwise it's a fast easy setup. So easy. And screan display is perfect. Intuitive functioning. And it looks great.
