Description
THIS PRODUCT MUST SHIP TRUCK FREIGHT AND DOES NOT QUALIFY FOR ANY SHIPPING PROMOTIONS

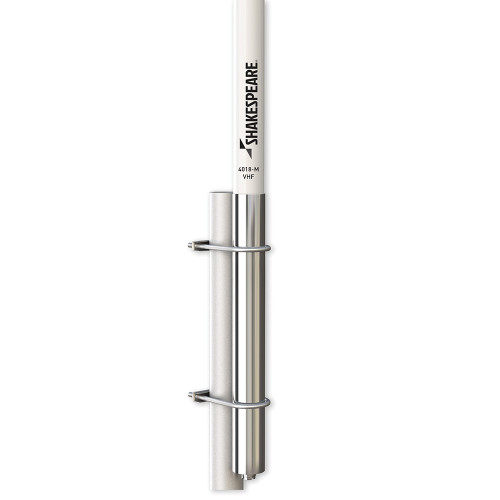

Shakespeare Style 4018-M VHF Marine
19' LENGTH, 9dB
PHASED 1/2-WAVE ELEMENTS IN A COLLINEAR ARRAY WITH A COAXIAL CHOKING SLEEVE TO SUPPRESS CABLE RADIATION
Same as Style 4018 with a special sleeve for mast mounting. Used primarily for land-based stations and on commercial vessels.
The top choice for charter boat captains and experienced sport fishing enthusiasts. This long-distance VHF antenna is rigid enough to stay erect in rough seas, yet exceptionally lightweight.
- Brass and copper elements
- Chrome-plated brass mid section ferrules and aluminum sleeve bottom ferrule
- SO-239 connector at base
- Suggested mount: Mast mount using supplied 1-1/3" U-bolts. The 4018-M can be strapped to a larger mast if steel banding (not supplied) is used.
- Two sections: Base 162"; Tip 66":
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
| Frequency: | VHF Marine band |
| Bandwidth: | (within 2.0:1 VSWR) 3 MHz |
| SWR: | 1.5:1 at 156.8 MHz |
| Impedance: | (ohms): 50 |
| Gain: | 9 dB |
| Max Input (Watts): | 25 |
| DC Ground: | NO |
| Termination: | SO-239 |
| Height (feet): | 19 |
| Polarization: | Vertical |
| Radiation pattern: | Omni-directional |
Specifications
- Antenna Band:
- VHF
- Color:
- BLACK
- Construction:
- FIBERGLASS
- Ferrule Type:
- CHROME PLATED
- Length (Inches):
- 96"
- Truck Freight:
- YES
