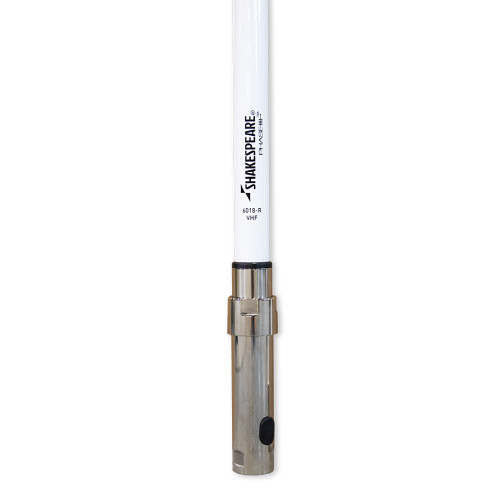

Shakespeare 6018-R Phase III VHF Antenna - 17′ 6″ (5.3M) VHF Marine Band 9dB Gain

6018-R Phase III VHF Antenna - 17′ 6″ (5.3M) VHF Marine Band 9dB Gain

Good communication over the VHF Marine Band depends on antenna height, quality and dB Gain. This high performing Phase III™ marine antenna is a powerhouse providing all of those necessities in our rugged, high-strength, foam-filled fiberglass radome for stability in high seas, high winds and high speeds.

Features:

• Silver-plated outer conductor, copper inner conductor

  • Stainless steel mounting sleeve

  • Type SO-239 connector inside mounting sleeve for easy mounting and dismounting for stowage

  • Suggested mount: Shakespeare® Style 409-R or 410-R Mounting Kit

  • Two sections: Base 110″, Tip 110″

Specifications:

• Design: Collinear-phased 1/2-wave elements with choking sleeve
• Height: 18' (5.48m)
• Weight: 20lbs (9kg)
• Gain: 8dB
• Connector Type: SO-239
• Suggested Mounting: 409-R or 410-R
• Impedance: 50 ohms
• Max Input Power: 150W
• DC Grounding: No
• Shakespeare Limited Warranty: 8 years
