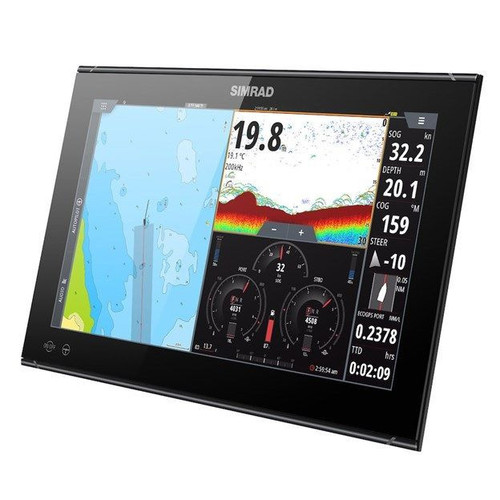

| Approvals |
| Compliance |
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Autopilot |
| Manouevres / Turn Patterns |
U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking |
| Steering Modes |
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Connectivity |
| Bluetooth |
Internal |
| Ethernet |
3 x 100 Mbits/s ports, RJ 45. (Adapt to 5 pin yellow using adapter cable 000-11246-001) |
| NMEA 0183 |
2x NMEA0183 (IEC61162-1)2x NMEA0183-HS (IEC61162-2) |
| NMEA 2000 |
1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity |
HDMI Video in from a PC |
| Video |
2x composite video (BNC)1x high definition video (1080p, HDCP 1.4, HDMI-A)1x high definition video output (1080p, no HDCP, HDMI-A) |
| WiFi |
Internal 802.11b/g/n |
| Display |
| Backlight Color |
White |
| Resolution |
1920x1080 |
| Screen Brightness |
1200 nits |
| Size and Type |
AHVA 18.5" optically bonded TFT |
| Viewing Angles |
80° top/bottom, 80° left/right |
| Electrical |
| Power Consumption, max. |
55 W +- 4 W |
| Recommended Fuse Rating |
7 A @ 12 V DC |
| Supply Voltage |
10 - 32 V DC |
| Environment |
| Operating Temperature Range |
-15°C to +55°C (5° F to 131° F) |
| Shock and Vibration |
CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Storage Temperature Range |
"-20°C to +60°C (4°F to 140°F) |
| Waterproof rating |
IPX6 on the font (when panel mounted correctly with only the front exposed) Rear not waterproof |
| MFD |
| AIS |
Receive AIS data over NMEA 2000 Or NMEA 0183 (IAS is not bridged to N2K) |
| Autopilot |
Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission |
| Cartography included |
World basemap |
| Cartography supported |
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Digital Switching |
BEP C-Zone, Naviop |
| External Storage |
1 Micro SD slot, or use USB Dashmount Card reader MI10 with 2x Micro SD slots. max. 32GB each. >32 GB format to NTFS |
| GPS |
External GPS required |
| Internal Storage |
16 GB |
| Multimedia |
via SonicHub2, Fusion Link, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) |
| Radar (inc. compatibility) |
Halo, Broadband, HD Radars |
| Sonar (inc. compatibility) |
External echo sounder module or connection to an MFD with built in echo sounder that can share sonar over Ethernet is required. |
| Weather |
SiriusXM via WM-3 (USA only), GRIB |
| Waypoints, Routes, Tracks |
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Compass Safe Distance - Metric, imperial |
50 cm (19.7") |
| Physical |
| Dimensions (W x H x D) |
478.1 x 305 x 83 mm (18.82 x 12.01 x 3.27") |
| With bracket |
509.9 x 348 x 214.6 mm (20.08 x 13.7 x 8.45") |
| Mounting Type |
Panel or Bracket mount (use optional heavy duty bracket 000-13547-001 |
| Weight |
4.8 kg (10.5 lbs.) |
| Other |
| Warranty Period |
2 Years |
| Interface |
Touch screen, OP40 or OP50 controller via NMEA 2000 |
