Maxwell

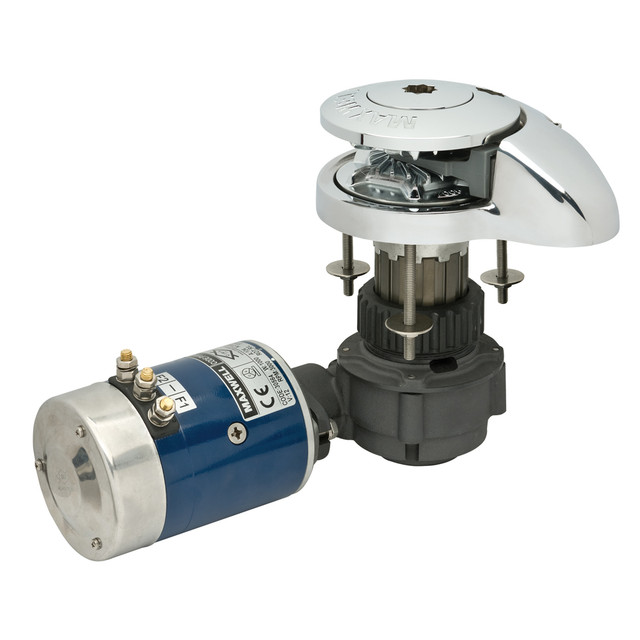

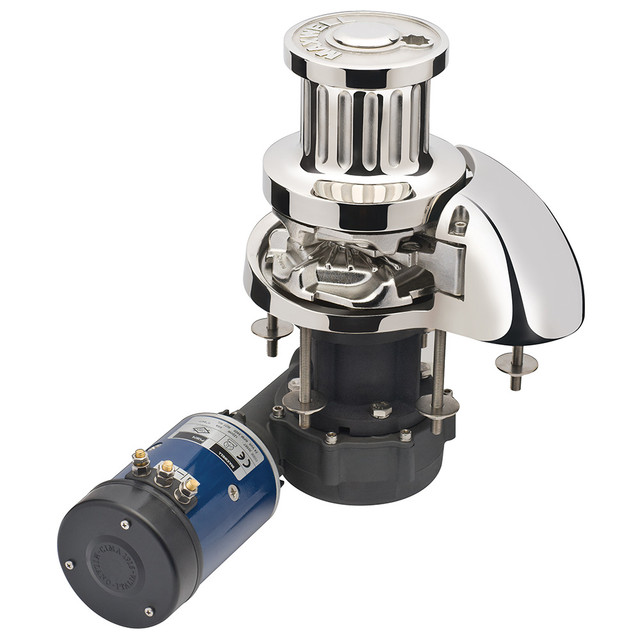

A Maxwell Vertical Windlass is a top-tier choice for automated anchor handling, known for its space-saving deck design. Unlike horizontal models, a vertical windlass positions its motor and gearbox safely below the deck, leaving only the low-profile gypsy (or optional capstan) exposed on top. This allows the anchor rode to feed vertically over the chainwheel and drop straight down into your anchor locker by gravity.
Key Technical Innovations
- Wave Design™ Chainwheel: This patented technology allows the gypsy to effortlessly accommodate slight variations in chain pitch. It provides smooth, jam-free transitions over the rope-to-chain splice while minimizing long-term rope wear.
- Heavy-Duty Pressure Arm: A pre-loaded stainless steel spring arm continuously applies maximum control pressure. This firmly grips both rope and chain, ensuring high performance even with all-chain rodes.
- Simplified Two-Piece System: The topworks separate smoothly from the below-deck drive system. This engineering choice simplifies retrofitting, fits variable deck thickness, and makes routine maintenance highly manageable.
