Description
Sport Series Colours with Built-In Camera
OceanLED Sport Series Colours w/Built-In Camera is the world’s first surface-mounted, full-colour underwater light with an integrated underwater camera. Designed for both recreational and professional use, this all-in-one solution delivers exceptional underwater visibility and unmatched lighting effects, ideal for leisure boats and sport fishing vessels.
The Sport Colours - Camera Edition is more than an accessory – it’s a competitive advantage.
Its wide angle-of-view offers a natural perspective with zero distortion, making it ideal for docking, hazard detection, and capturing underwater action in full clarity. Producing 3,500 fixture lumens, the Sport Colours – Camera Edition leverages OceanLED’s most advanced optical technology, ensuring uncompromised performance.
Technical Details & Documents:
| Technical | |
| Fixture Lumens | 3,500 |
| IP Rating | IP69k Certified |
| Minimum-Maximum operating voltage DC | 9-32V DC |
| Current / Amp Draw (DC) | 12V DC 5.5A / 24V DC 2.4A |
| Camera | |
| Image Sensor | 1/4” CMOS |
| Minimum Illumination | 0.01 Lux |
| White Balance | Auto |
| Exposure | Auto |
| Video Output | 1.0Vp-p 75Ω BNC |
| TV System | PAL: 720 x 576 pixels - 25fps NTSC: 720 x 480 pixels - 30fps |
| Physical | |
| Total Weight | 700g |
| Cable Length | 3m |
| Hole cut-out for cable entry | 0.5” (12.5mm) |
| Material | AB2 Aluminium Bronze |
| Footprint |
3.93" (100mm) |
| Mounting Recommendations | |
| Boat size | Up to 65’ (20m) |
| Transom / Hull spacing | 2-4ft (0.5-1.2m) |
| Transom Quantity | 1-2 |
| Installation depth (To top of fixture) | 8-10” (20-25cm) |
Sport Colours - Camera Edition Product Guide
Sport Series Mounting Template
What's in the Box:
- Sport Colours - Camera Edition
- In-Line Fuse Kit
- BNC Adaptor
- Mounting Screws
- Quick Install Guide
 |

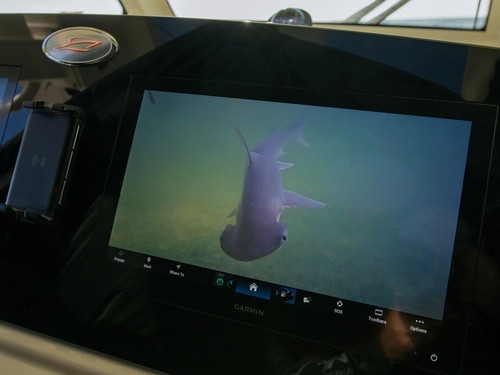

See Everything Beneath the WaterlineEngineered to deliver sharp, colour-accurate video even in low light conditions, with a wide angle of view, the Sport Colours – Camera Edition offers a distortion-free perspective, perfect for dockside maneuvering, detecting submerged hazards, or even capturing underwater footage of trophy catches. |
Built for Harsh Marine Environments. Tested to IP69KThe Sport Colours – Camera Edition features a robust marine-grade aluminum bronze housing, specialist toughened glass, and Tritonium™ coating to resist marine growth. Designed for durability and built for the elements, the Sport Colours – Camera Edition has been rigorously tested to IP69K standards for waterproofing, ensuring your complete peace of mind. The addition of advanced seals makes it one of the most reliable and long-lasting underwater lights available anywhere. |
 |
 |
Easy Installation. Surface MountedInstallation is fast and simple, requiring only a single 12.5mm (0.5”) hole for the cable to pass through the hull, thanks to its surface mount design. This makes it ideal for both new builds and retrofits, and like all OceanLED products, it comes with our trusted No-Hassle Warranty. |
Advanced Underwater Light OpticsAt its core, the Sport Colours - Camera Edition uses OceanLED’s most advanced underwater optics. This proprietary optical technology supercharges performance, creating a focused blade of light designed to penetrate further than its competitors, even lights far more powerful. |
|
 |
See Everything Beneath the WaterlineEngineered to deliver sharp, colour-accurate video even in low light conditions, with a wide angle of view, the Sport Colours – Camera Edition offers a distortion-free perspective, perfect for dockside maneuvering, detecting submerged hazards, or even capturing underwater footage of trophy catches. |
